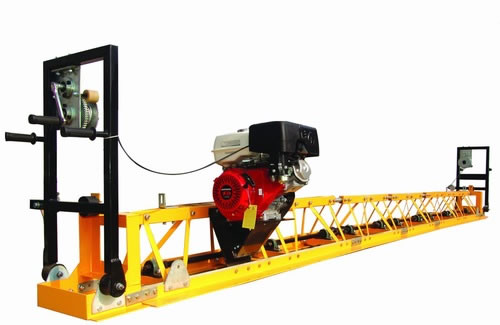

Frame Truss Screed

Advantages

Concrete frame truss screed is the new type of construction equipment used to compact concrete surface of highway, plant and square.

Features of the Aluminum Alloys Frame Vibratory Truss Screed

1. The machine adopts imported NSK strong anti-knock radial bearing to ensure the performance. The radial run-out of the spindle is less than 0.05mm, which ensures long time high-speed revolution of the concrete frame truss screed.
2. Super universal joint connection is adopted for easy adjustment of 5-10° arch.
3. Steel structure overall framework is firm and anti-knock.
4. The baseplate allows easy assembly and disassembly, which greatly lower the maintenance cost.
5. Aluminum alloys frame vibratory truss screed adopts spray paint treated surface which is pretty, rust-proof and anti-corrosion.
6. The machine is equipped with HONDA gasoline engine with quality guarantee, superior performance and easy start-up.

Main Specifications

Model	SC-2
Vibrational Frequency	70Hz
Vibrating force	11kN/(≤)2000mm
Power Mode	HONDA GX160	HONDA GX270		HONDA GX390
Type	Gasoline Engine,AC 4 Stroke,OHV, Single Cylinder
Power	5.5hp/3600rpm	9.0hp/3600rpm		13.0hp/3600rpm
Oil Tank Capacity	3.6L	6L		6.5L
Lubricating Oil Capacity	0.6L	1.1L
Fuel Consumption	313g/kWh
Dimensions			weight
2m Combination Joint	400mm×2000mm		68kg
1m Combination Joint	400mm×1000mm		35kg
0.5m Combination Joint	400mm×250mmX2		15kg

Operation and Precautions

1. Concrete frame truss screed is made of high-strength aluminum alloy, which can form stable frame structure and lower the weight and labour intensity.
2. The machine is easy and convenient to install without specialized tools.
3. One can operate the machine by controlling the integrated operation handle.

Payment, Package and Transportation

Payment: L/C (Letter of Credit), D/P (Documents against Payment), T/T (Bank Transfer)
Packaging Details: Container loading without packing
